Dry-Floor Underfloor Heating on Wooden Subfloors: A Practical Guide
Installing underfloor heating on a timber subfloor demands a fundamentally different approach from the conventional concrete-screed method. Rather than pouring a heavy wet layer over the pipework, a dry-floor system uses pre-formed plates, boards, and fixings to distribute heat evenly across the surface. This makes it the preferred choice for wooden floor constructions, upper-story installations, and renovation projects where added floor loading must be avoided. Sourcing the complete dry-floor kit from a specialist factory—insulation boards, heat distribution plates, staples, and clips—ensures all components are engineered as a matched system.
What Is a Dry-Floor Heating System?
A dry-floor underfloor heating system removes the need for cementitious screed entirely. Instead of embedding pipework in a wet concrete slab, it uses rigid insulation panels and aluminum heat distribution plates to carry the heated water pipes just beneath the finished floor surface. Because no screed is poured, the overall floor build-up is significantly lighter—typically adding only 20 to 40 millimetres to the floor height. This makes dry-floor systems particularly well suited to timber subfloors, which lack the structural mass to support a wet screed layer. A factory-produced kit from a reputable manufacturer will include every key element needed for a complete installation, reducing the risk of mismatched components arriving on site.
Heat Distribution Plates: The Core Component
Heat distribution plates are the defining feature of any dry-floor system. These aluminum plates clip or snap over the heating pipes and sit in direct contact with the underside of the floorboards above. Their purpose is straightforward but critical: without them, heat from the pipe would concentrate in narrow strips directly above the tube, creating uneven surface temperatures and potentially stressing the timber. The aluminum conducts warmth laterally across the plate, spreading it into a more uniform profile that heats the floorboard evenly from edge to edge. A quality manufacturer produces plates with precise pipe-channel geometry to ensure a snug fit around 16 or 20 millimetre diameter pipes, with consistent contact pressure around the full circumference of the tube.
Mushroom Board Systems
The mushroom board is a widely used dry-floor format that simplifies pipe installation considerably. Each board is moulded from high-density polystyrene with pre-formed circular recesses—resembling the shape that gives the system its name—connected by straight pipe channels. The heating pipe is simply pressed into the channel by hand, requiring no fixings or clips at all. The board itself rests on a laminate insulation underlayer, and the finished floorboard or tongue-and-groove panel is laid directly over the top. Mushroom boards are available in a range of thicknesses and compressive strengths, with boards rated for different floor finishes, from engineered timber to laminate. The integral insulation within each board also reduces downward heat loss, which is especially important in upper-story applications where warming the ceiling below represents wasted energy.

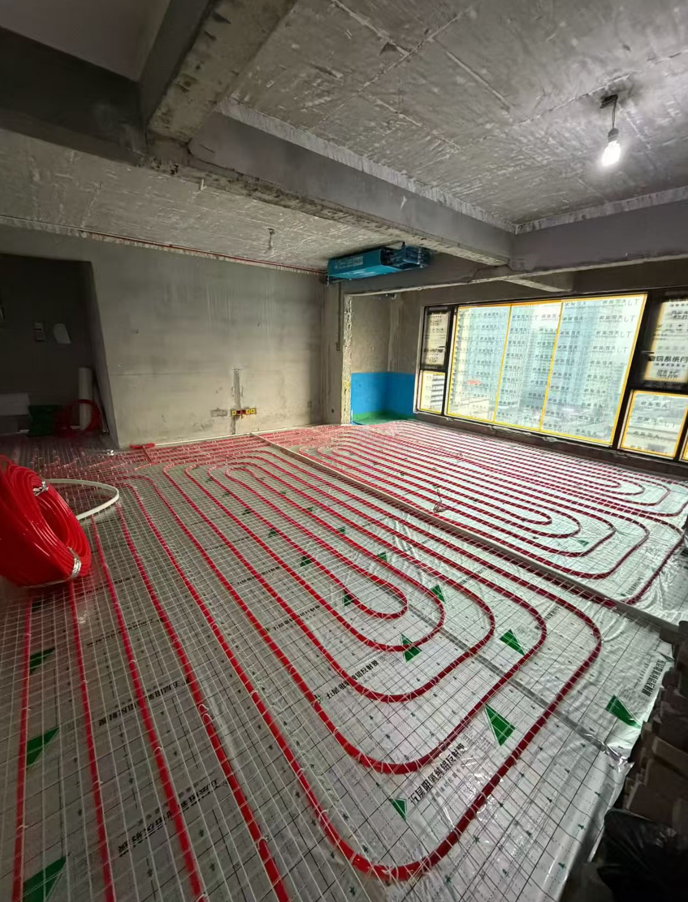

Fixing Pipes to Timber Joists and Flat Subfloors
When installing over exposed wooden joists or a flat timber subfloor, two distinct fixing methods are used. For joist-mounted systems, a contractor fixes vertical staples—sometimes called hold-down clips—through the insulation board and into the side or underside of the joist, securing the pipe at regular intervals. This method keeps the pipe suspended between joists and maintains a consistent height within the floor void. For flat timber subfloors, spring-loaded pipe clips are pinned to the surface at spacing intervals dictated by the heat output requirement, typically between 150 and 200 millimetres. In both cases, spacing directly influences the surface temperature and the system's heat output per square metre, so following the manufacturer's layout guidance is essential for achieving the design performance.
Moisture Considerations for Timber Subfloors
Wood is hygroscopic—it absorbs and releases moisture in response to ambient conditions. Before any dry-floor heating system is installed, the timber subfloor must be fully acclimatised to the room environment, with a moisture content below the threshold specified by the floor finish manufacturer, typically 12 percent or lower for solid timber. Installing a vapour control layer between the timber and the insulation boards is standard practice, particularly in ground-floor locations or where rising damp is a concern. Any residual moisture trapped beneath a sealed floor build-up can lead to timber decay, adhesive failure, and, in severe cases, mould growth within the floor void. A reliable manufacturer includes guidance on moisture thresholds and recommended membrane products as part of the technical specification for their dry-floor range.
Why a Complete Kit from One Supplier Matters
One of the most practical advantages of sourcing a complete dry-floor kit from a single manufacturer is dimensional compatibility. Heat distribution plates, mushroom boards, and staple or clip fixings are all produced to precise tolerances, and when they come from the same factory, they are guaranteed to align correctly during installation. A mismatched plate profile or an incorrectly sized staple can create gaps in the insulation, reduce heat transfer efficiency, or allow the pipe to move within its channel over time. Buying the full system from one supplier also streamlines technical support—if a specifier or installer has a question about spacing, load rating, or moisture protection, they can obtain a single authoritative answer rather than navigating conflicting guidance from multiple component manufacturers.
References
EN 1264-4:2008. Water based surface embedded heating and cooling systems — Part 4: Installation. CEN, Brussels.
BS 8203:2001. Code of practice for installation of ceramic floor tiles. BSI.
CIBSE Guide B: Heating, ventilating, air conditioning and refrigeration. CIBSE, London.
